CATEGORIESHongming Sheng manufactures custom aluminum battery enclosures for 48V 200Ah battery projects, including solar energy storage, telecom backup and off-grid storage equipment.
The housing dimensions, internal supports and openings follow your actual battery layout. Send the enclosure drawing together with the cell arrangement, BMS mounting position and connector requirements for a mechanical fabrication review.
Email: info@hms1688.com
Send Battery Enclosure Drawing
 |  |  |
 |  |  |

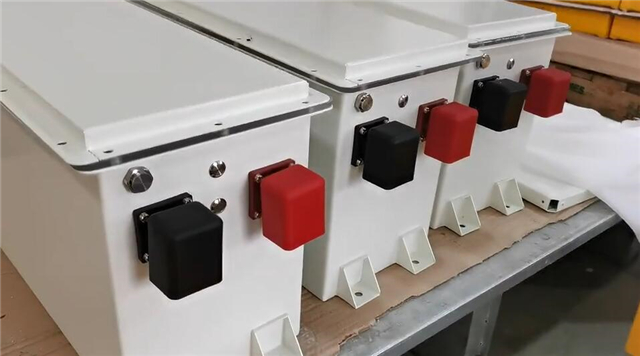

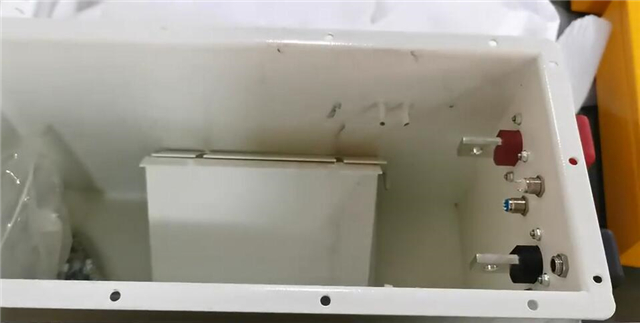

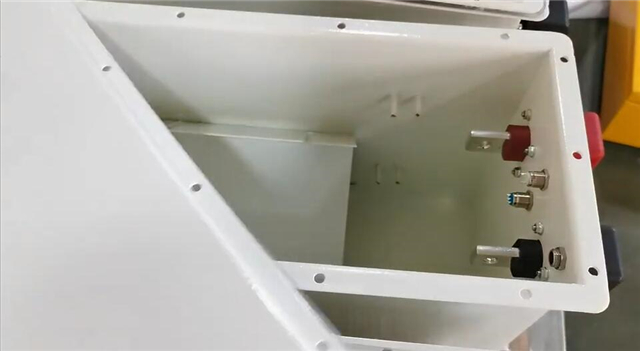

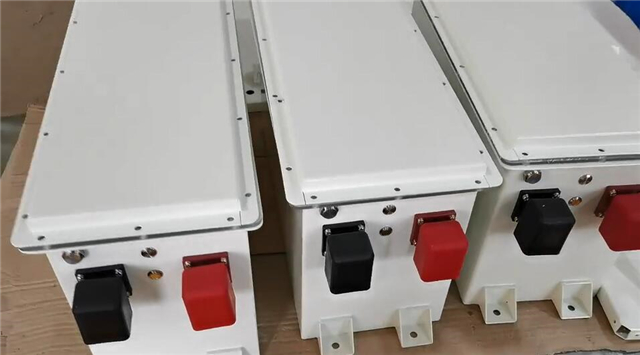

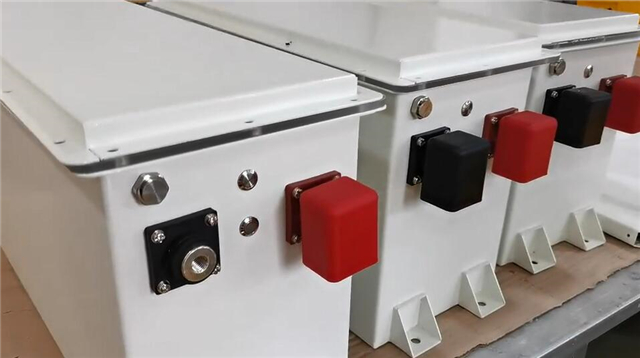

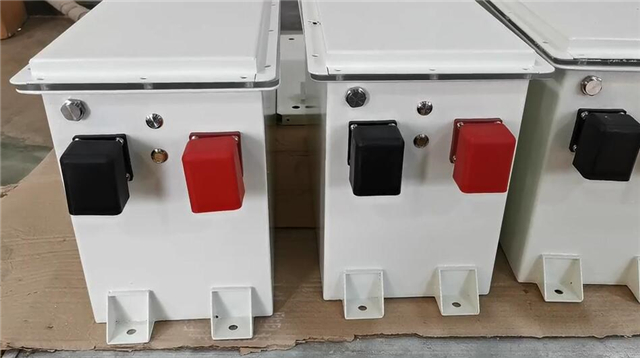

Reference samples. Dimensions, internal layout and finish are customized to the customer's battery design.
| Item | Project Options |
|---|---|
| Material | Aluminum alloy, with grade and thickness confirmed from the drawing and structural requirements. |
| Fabrication | Laser cutting and CNC bending, with joining and hardware installation where specified. |
| Openings and Mounts | Terminal cutouts, connector openings, display windows and internal mounting features matched to the selected hardware. |
| Covers and Protection | Cover access, fasteners, sealing details and ventilation openings reviewed against the application requirements. |
| Surface Finish | Powder coating or anodizing selected for the specified material, color and appearance requirements. |
Internal layout: Include cell or pack dimensions, support positions, BMS mounting points and cable clearance.
External interfaces: Mark connector locations, display cutouts, installation holes and critical dimensions that must align with surrounding equipment.
Supply requirements: Specify the housing body, covers, brackets and hardware included in the order, together with quantity, finish and inspection requirements.
Send your 2D drawing or 3D model, battery layout, aluminum grade, thickness, quantity, finish and target delivery date. Our team can review the mechanical structure and prepare a quotation based on the agreed fabrication scope.
Customer drawings, CAD files and project specifications are handled confidentially. NDA support is available for custom OEM projects.
